Description

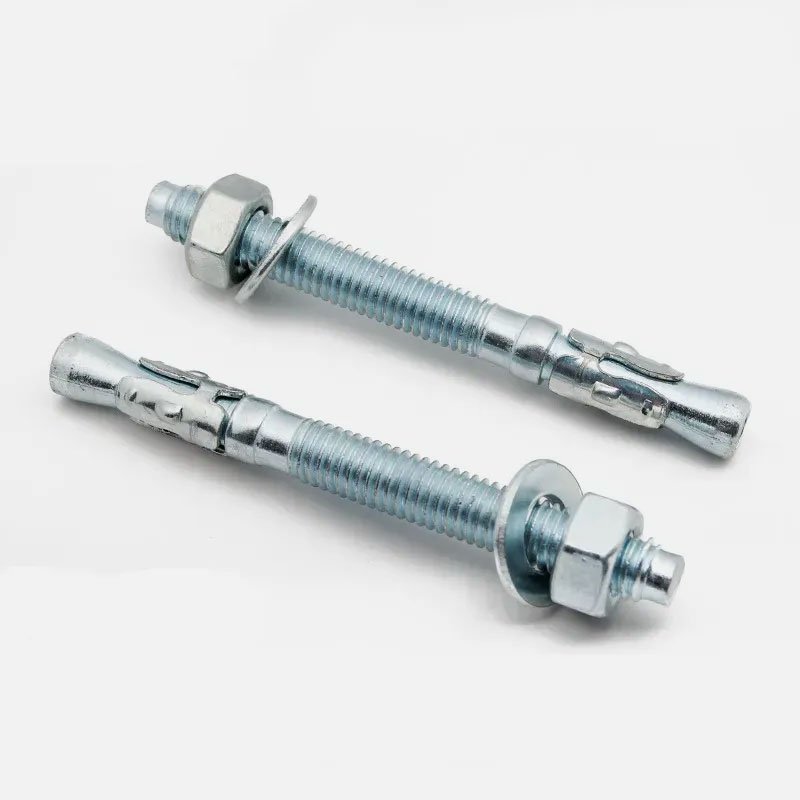

Upgrade your structural, marine, and chemical installations with the M10x100 Wedge Anchor Bolt Set in SS316 stainless steel. This complete anchor set—comprising the wedge anchor bolt, hex nut, and washer—is engineered to deliver excellent performance, maximum corrosion resistance, and secure fixations in solid concrete or masonry, even in the harshest environments.
Product Overview
- Anchor Size: M10 x 100mm (10mm diameter, 100mm length)
- Material: SS316 (A4 / 1.4401) marine-grade stainless steel, for unmatched protection against corrosion, acids, alkalis, and saltwater
- Assembly Set Includes:
- One M10x100mm wedge anchor bolt (SS316)
- One M10 hex nut (DIN 934 SS316; across flats: 16.73–17mm; thickness: 7.64–8mm)
- One M10 flat washer (DIN 125A SS316; inner diameter: 10.5–10.77mm; outer diameter: 19.48–20mm; thickness: 1.8–2.2mm)
- Finish: Passivated or bright polished for hygiene and longevity
Key Features
- Maximum Corrosion Resistance: SS316 construction ensures long service life and full reliability even in coastal, chemical, or corrosive site conditions.
- Secure Expansion Fixing: The wedge anchor provides a high-strength hold in solid concrete or dense masonry—vibration resistant and reliable under heavy loads.
- Easy Installation: Drill a 10mm hole, insert anchor, hammer to set, then tighten the nut to expand the wedge for a secure grip.
- Standards Compliance: Nut and washer are DIN-compliant for universal fit and quality assurance.
Technical Specifications
- Drill Hole Diameter: 10mm
- Minimum Embedment Depth: 50mm
- Usable Fixture Thickness: Anchor is 100mm long; subtract embedment depth and nut/washer thickness for your mounting
- Nut Dimensions: M10, 17mm across flats
- Washer Dimensions: M10, up to 20mm outer diameter
- Expansion Clip: Heavy-duty mechanical expansion for grip and vibration safety
Applications
- Securing base plates of structural steel, machines, or signboards
- Anchoring marine, outdoor, and chemical-process equipment
- Installing pipe supports, handrails, cable trays, and guards in water treatment or food plants
- Fastening load-critical components in infrastructure, sanitary, and construction settings
Why Choose SS316 M10x100 Wedge Anchors?
- Demanded wherever maximum corrosion or hygiene protection is required
- Suitable for offshore, marine, tunneling, water, and chemical installations
- High load capacity and vibration resistance—trusted in critical and long-life projects
- Available in all sizes and custom lengths for your specific needs
