Description

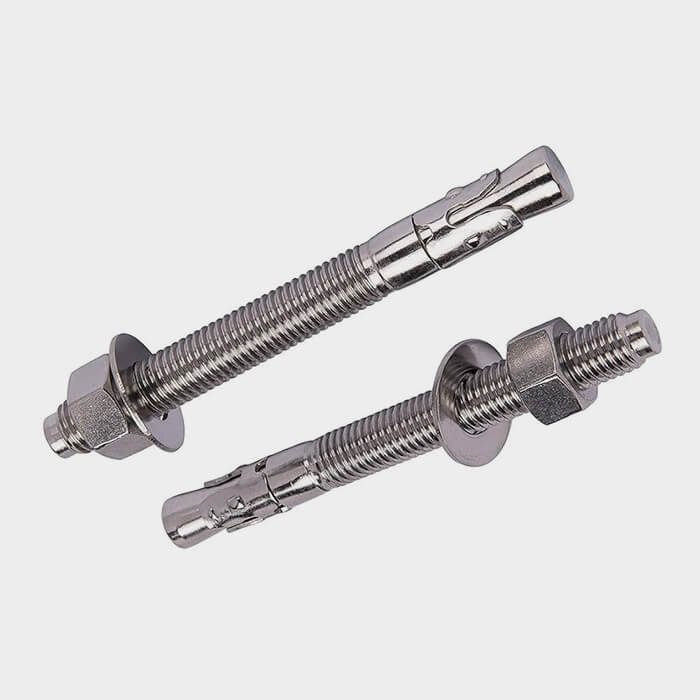

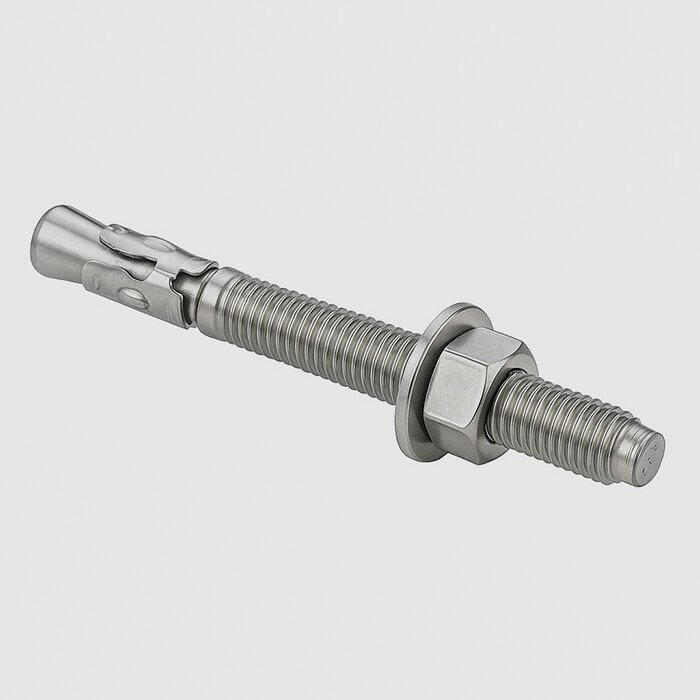

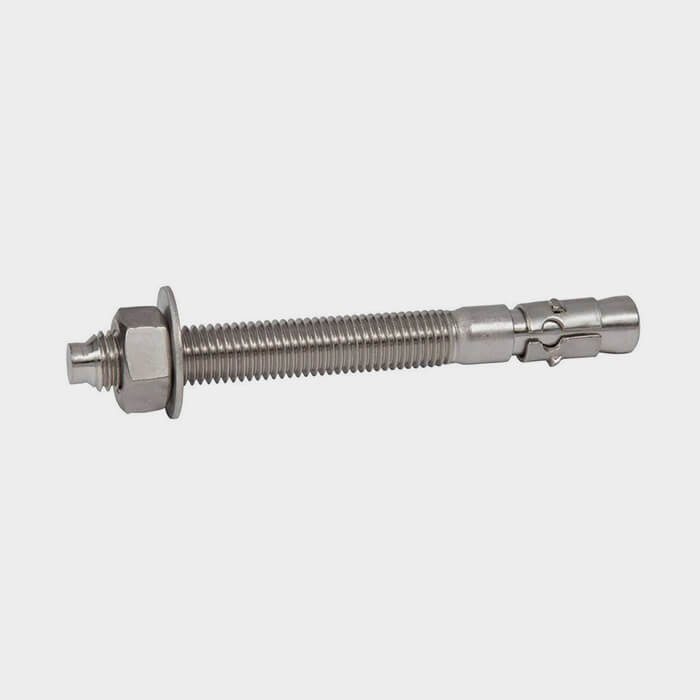

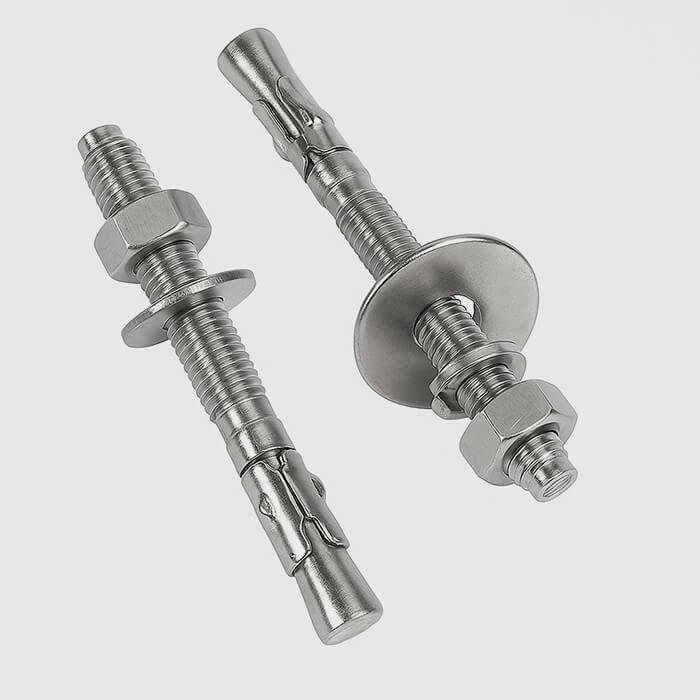

Upgrade your structural and heavy-duty installations with the M10x100 Wedge Anchor Bolt Set in SS304—a complete stainless steel anchoring solution designed for secure, long-lasting fixation into solid concrete or masonry. This set includes an M10x100mm wedge anchor, hex nut, and washer, all crafted in AISI 304 stainless steel, ensuring excellent corrosion and rust resistance for demanding indoor, outdoor, marine, or sanitary environments.
Product Overview
- Wedge Anchor Size: M10 x 100mm (10mm diameter, 100mm length)
- Material: SS304 (AISI 304 / 1.4301) stainless steel for superior durability and corrosion resistance
- Assembly Includes:
- One wedge anchor bolt
- One M10 hex nut (DIN 934 standard; across flats: 16.73–17mm; thickness: 7.64–8mm)
- One M10 flat washer (DIN 125 standard; inner diameter: 10.5–10.77mm; outer diameter: 19.48–20mm; thickness: 1.8–2.2mm)
- Finish: Polished or passivated for hygiene and longevity
Key Features
- Reliable Anchoring: The expansion wedge grips solid concrete/masonry upon tightening, providing heavy load-holding capacity and vibration resistance
- Corrosion Resistant: Made entirely from SS304, suitable for damp, coastal, chemical, or food-grade environments
- DIN-Compliant Hardware: Nut and washer meet international standards for easy, reliable assembly and replacements
- Quick Installation: Drill, insert anchor, tap in, then tighten the nut to set the wedge securely
Technical Specifications
- Drill Hole Diameter: 10mm
- Minimum Embedment Depth: 50mm
- Bolt Length: 100mm (suitable for fixtures up to ~50mm thick—check your application requirements)
- Nut Size: M10, 17mm across flats
- Washer Size: M10, 20mm outer diameter
Typical Applications
- Fixing structural steel frames and base plates
- Securing pipe supports, cable trays, and brackets to concrete
- Anchoring machinery, handrails, and fencing
- Use in chemical plants, marine and sewage works, food processing, clean room, and outdoor installations
Why Choose SS304 M10x100 Wedge Anchors?
- Proven in construction, marine, plumbing, and food/pharma sectors
- High tensile and shear strength; withstands dynamic loads
- Clean, professional look for visible or hygienic locations
- Bulk and custom lengths available for any project size
